Graphics Types

Basic graphics types (point, rect, size, color, bitmaps, etc.) and utility functions.

Modules

Color Definitions

A list of all of the named colors available with links to the color map on the Pebble Developer website.

Function Documentation

  • SDK 3
  • SDK 4
bool gcolor_equal(GColor8 x, GColor8 y)

Comparison function for GColors.

bool gcolor_equal(GColor8 x, GColor8 y)

True if both colors are identical or both are invisible (i.e. both have alpha values of .a=0).

GColor8 gcolor_legible_over(GColor8 background_color)

This method assists in improving the legibility of text on various background colors. It takes the background color for the region in question and computes a color for maximum legibility.

Parameters

background_color

Background color for the region in question

Returns

A legible color for the given background color

bool gpoint_equal(const GPoint *const point_a, const GPoint *const point_b)

Tests whether 2 points are equal.

Parameters

point_a

Pointer to the first point

point_b

Pointer to the second point

Returns

true if both points are equal, false if not.

bool gsize_equal(const GSize * size_a, const GSize * size_b)

Tests whether 2 sizes are equal.

Parameters

size_a

Pointer to the first size

size_b

Pointer to the second size

Returns

true if both sizes are equal, false if not.

bool grect_equal(const GRect *const rect_a, const GRect *const rect_b)

Tests whether 2 rectangles are equal.

Parameters

rect_a

Pointer to the first rectangle

rect_b

Pointer to the second rectangle

Returns

true if both rectangles are equal, false if not.

bool grect_is_empty(const GRect *const rect)

Tests whether the size of the rectangle is (0, 0).

Note

If the width and/or height of a rectangle is negative, this function will return true!

Parameters

rect

Pointer to the rectangle

Returns

true if the rectangle its size is (0, 0), or false if not.

void grect_standardize(GRect * rect)

Converts a rectangle's values so that the components of its size (width and/or height) are both positive. In the width and/or height are negative, the origin will offset, so that the final rectangle overlaps with the original. For example, a GRect with size (-10, -5) and origin (20, 20), will be standardized to size (10, 5) and origin (10, 15).

Parameters

rect (in)

The rectangle to convert.

rect (out)

The standardized rectangle.

void grect_clip(GRect *const rect_to_clip, const GRect *const rect_clipper)

Trim one rectangle using the edges of a second rectangle.

Parameters

rect_to_clip (in)

The rectangle that needs to be clipped (in place).

rect_to_clip (out)

The clipped rectangle.

rect_clipper

The rectangle of which the edges will serve as "scissors" in order to trim rect_to_clip.

bool grect_contains_point(const GRect * rect, const GPoint * point)

Tests whether a rectangle contains a point.

Parameters

rect

The rectangle

point

The point

Returns

true if the rectangle contains the point, or false if it does not.

GPoint grect_center_point(const GRect * rect)

Convenience function to compute the center-point of a given rectangle. This is equal to (rect->x + rect->width / 2, rect->y + rect->height / 2).

Parameters

rect

The rectangle for which to calculate the center point.

Returns

The point at the center of rect

GRect grect_crop(GRect rect, const int32_t crop_size_px)

Reduce the width and height of a rectangle by insetting each of the edges with a fixed inset. The returned rectangle will be centered relative to the input rectangle.

Note

The function will trip an assertion if the crop yields a rectangle with negative width or height.

Parameters

rect

The rectangle that will be inset

crop_size_px

The inset by which each of the rectangle will be inset. A positive inset value results in a smaller rectangle, while negative inset value results in a larger rectangle.

Returns

The cropped rectangle.

uint16_t gbitmap_get_bytes_per_row(const GBitmap * bitmap)

Get the number of bytes per row in the bitmap data for the given GBitmap. On rectangular displays, this can be used as a safe way of iterating over the rows in the bitmap, since bytes per row should be set according to format. On circular displays with pixel format of GBitmapFormat8BitCircular this will return 0, and should not be used for iteration over frame buffer pixels. Instead, use GBitmapDataRowInfo, which provides safe minimum and maximum x values for a given row's y value.

Parameters

bitmap

A pointer to the GBitmap to get the bytes per row

Returns

The number of bytes per row of the GBitmap

See Also

gbitmap_get_data
GBitmapFormat gbitmap_get_format(const GBitmap * bitmap)

Get the GBitmapFormat for the GBitmap.

Parameters

bitmap

A pointer to the GBitmap to get the format

Returns

The format of the given GBitmap.

uint8_t * gbitmap_get_data(const GBitmap * bitmap)

Get a pointer to the raw image data section of the given GBitmap as specified by the format of the bitmap.

Parameters

bitmap

A pointer to the GBitmap to get the data

Returns

pointer to the raw image data for the GBitmap

See Also

gbitmap_get_bytes_per_row
void gbitmap_set_data(GBitmap * bitmap, uint8_t * data, GBitmapFormat format, uint16_t row_size_bytes, bool free_on_destroy)

Set the bitmap data for the given GBitmap.

Parameters

bitmap

A pointer to the GBitmap to set data to

data

A pointer to the bitmap data

format

the format of the bitmap data. If this is a palettized format, make sure that there is an accompanying call to gbitmap_set_palette.

row_size_bytes

How many bytes a single row takes. For example, bitmap data of format GBitmapFormat1Bit must have a row size as a multiple of 4 bytes.

free_on_destroy

Set whether the data should be freed when the GBitmap is destroyed.

See Also

gbitmap_destroy
GRect gbitmap_get_bounds(const GBitmap * bitmap)

Gets the bounds of the content for the GBitmap. This is set when loading the image or if changed by gbitmap_set_bounds.

Parameters

bitmap

A pointer to the GBitmap to get the bounding box from.

Returns

The bounding box for the GBitmap.

See Also

gbitmap_set_bounds
void gbitmap_set_bounds(GBitmap * bitmap, GRect bounds)

Set the bounds of the given GBitmap.

Parameters

bitmap

A pointer to the GBitmap to set the bounding box.

bounds

The bounding box to set.

See Also

gbitmap_get_bounds
GColor * gbitmap_get_palette(const GBitmap * bitmap)

Get the palette for the given GBitmap.

Parameters

bitmap

A pointer to the GBitmap to get the palette from.

Returns

Pointer to a GColor array containing the palette colors.

See Also

gbitmap_set_palette
void gbitmap_set_palette(GBitmap * bitmap, GColor * palette, bool free_on_destroy)

Set the palette for the given GBitmap.

Parameters

bitmap

A pointer to the GBitmap to set the palette to

palette

The palette to be used. Make sure that the palette is large enough for the bitmap's format.

free_on_destroy

Set whether the palette data should be freed when the GBitmap is destroyed or when another palette is set.

See Also

gbitmap_get_format
GBitmap * gbitmap_create_with_resource(uint32_t resource_id)

Creates a new GBitmap on the heap using a Pebble image file stored as a resource. The resulting GBitmap must be destroyed using gbitmap_destroy().

Parameters

resource_id

The ID of the bitmap resource to load

Returns

A pointer to the GBitmap. NULL if the GBitmap could not be created

GBitmap * gbitmap_create_with_data(const uint8_t * data)

Creates a new GBitmap on the heap initialized with the provided Pebble image data.

The resulting GBitmap must be destroyed using gbitmap_destroy() but the image data will not be freed automatically. The developer is responsible for keeping the image data in memory as long as the bitmap is used and releasing it after the bitmap is destroyed.

Note

One way to generate Pebble image data is to use bitmapgen.py in the Pebble SDK to generate a .pbi file.

Parameters

data

The Pebble image data. Must not be NULL. The function assumes the data to be correct; there are no sanity checks performed on the data. The data will not be copied and the pointer must remain valid for the lifetime of this GBitmap.

Returns

A pointer to the GBitmap. NULL if the GBitmap could not be created

GBitmap * gbitmap_create_as_sub_bitmap(const GBitmap * base_bitmap, GRect sub_rect)

Create a new GBitmap on the heap as a sub-bitmap of a 'base' GBitmap, using a GRect to indicate what portion of the base to use. The sub-bitmap will just reference the image data and palette of the base bitmap. No deep-copying occurs as a result of calling this function, thus the caller is responsible for making sure the base bitmap and palette will remain available when using the sub-bitmap. Note that you should not destroy the parent bitmap until the sub_bitmap has been destroyed. The resulting GBitmap must be destroyed using gbitmap_destroy().

Parameters

base_bitmap (in)

The bitmap that the sub-bitmap of which the image data will be used by the sub-bitmap

sub_rect

The rectangle within the image data of the base bitmap. The bounds of the base bitmap will be used to clip sub_rect.

Returns

A pointer to the GBitmap. NULL if the GBitmap could not be created

GBitmap * gbitmap_create_from_png_data(const uint8_t * png_data, size_t png_data_size)

Create a GBitmap based on raw PNG data. The resulting GBitmap must be destroyed using gbitmap_destroy(). The developer is responsible for freeing png_data following this call.

Note

PNG decoding currently supports 1,2,4 and 8 bit palettized and grayscale images.

Parameters

png_data

PNG image data.

png_data_size

PNG image size in bytes.

Returns

A pointer to the GBitmap. NULL if the GBitmap could not be created

GBitmap * gbitmap_create_blank(GSize size, GBitmapFormat format)

Creates a new blank GBitmap on the heap initialized to zeroes. In the case that the format indicates a palettized bitmap, a palette of appropriate size will also be allocated on the heap. The resulting GBitmap must be destroyed using gbitmap_destroy().

Parameters

size

The Pebble image dimensions as a GSize.

format

The GBitmapFormat the created image should be in.

Returns

A pointer to the GBitmap. NULL if the GBitmap could not be created

GBitmap * gbitmap_create_blank_with_palette(GSize size, GBitmapFormat format, GColor * palette, bool free_on_destroy)

Creates a new blank GBitmap on the heap, initialized to zeroes, and assigns it the given palette. No deep-copying of the palette occurs, so the caller is responsible for making sure the palette remains available when using the resulting bitmap. Management of that memory can be handed off to the system with the free_on_destroy argument.

Parameters

size

The Pebble image dimensions as a GSize.

format

the GBitmapFormat the created image and palette should be in.

palette

a pointer to a palette that is to be used for this GBitmap. The palette should be large enough to hold enough colors for the specified format. For example, GBitmapFormat2BitPalette should have 4 colors, since 2^2 = 4.

free_on_destroy

Set whether the palette data should be freed along with the bitmap data when the GBitmap is destroyed.

Returns

A Pointer to the GBitmap. NULL if the GBitmap could not be created.

GBitmap * gbitmap_create_palettized_from_1bit(const GBitmap * src_bitmap)

Given a 1-bit GBitmap, create a new bitmap of format GBitmapFormat1BitPalette. The new data buffer is allocated on the heap, and a 2-color palette is allocated as well.

Note

The new bitmap does not depend on any data from src_bitmap, so src_bitmap can be freed without worry.

Parameters

src_bitmap

A GBitmap of format GBitmapFormat1Bit which is to be copied into a newly created GBitmap of format GBitmapFormat1BitPalettized.

Returns

The newly created 1-bit palettized GBitmap, or NULL if there is not sufficient space.

void gbitmap_destroy(GBitmap * bitmap)

Destroy a GBitmap. This must be called for every bitmap that's been created with gbitmap_create_*.

This function will also free the memory of the bitmap data (bitmap->addr) if the bitmap was created with gbitmap_create_blank() or gbitmap_create_with_resource().

If the GBitmap was created with gbitmap_create_with_data(), you must release the memory after calling gbitmap_destroy().

GBitmapSequence * gbitmap_sequence_create_with_resource(uint32_t resource_id)

Creates a GBitmapSequence from the specified resource (APNG/PNG files)

Parameters

resource_id

Resource to load and create GBitmapSequence from.

Returns

GBitmapSequence pointer if the resource was loaded, NULL otherwise

bool gbitmap_sequence_update_bitmap_next_frame(GBitmapSequence * bitmap_sequence, GBitmap * bitmap, uint32_t * delay_ms)

Updates the contents of the bitmap sequence to the next frame and optionally returns the delay in milliseconds until the next frame.

Note

GBitmap must be large enough to accommodate the bitmap_sequence image gbitmap_sequence_get_bitmap_size

Parameters

bitmap_sequence

Pointer to loaded bitmap sequence

bitmap

Pointer to the initialized GBitmap in which to render the bitmap sequence

delay_ms (out)

If not NULL, returns the delay in milliseconds until the next frame.

Returns

True if frame was rendered. False if all frames (and loops) have been rendered for the sequence. Will also return false if frame could not be rendered (includes out of memory errors).

bool gbitmap_sequence_update_bitmap_by_elapsed(GBitmapSequence * bitmap_sequence, GBitmap * bitmap, uint32_t elapsed_ms)

Updates the contents of the bitmap sequence to the frame at elapsed in the sequence. For looping animations this accounts for the loop, for example an animation of 1 second that is configured to loop 2 times updated to 1500 ms elapsed time will display the sequence frame at 500 ms. Elapsed time is the time from the start of the animation, and will be ignored if it is for a time earlier than the last rendered frame.

Note

GBitmap must be large enough to accommodate the bitmap_sequence image gbitmap_sequence_get_bitmap_size

This function is disabled for play_count 0

Parameters

bitmap_sequence

Pointer to loaded bitmap sequence

bitmap

Pointer to the initialized GBitmap in which to render the bitmap sequence

elapsed_ms

Elapsed time in milliseconds in the sequence relative to start

Returns

True if a frame was rendered. False if all frames (and loops) have already been rendered for the sequence. Will also return false if frame could not be rendered (includes out of memory errors).

void gbitmap_sequence_destroy(GBitmapSequence * bitmap_sequence)

Deletes the GBitmapSequence structure and frees any allocated memory/decoder_data.

Parameters

bitmap_sequence

Pointer to the bitmap sequence to free (delete)

bool gbitmap_sequence_restart(GBitmapSequence * bitmap_sequence)

Restarts the GBitmapSequence to the first frame gbitmap_sequence_update_bitmap_next_frame.

Parameters

bitmap_sequence

Pointer to loaded bitmap sequence

Returns

True if sequence was restarted, false otherwise

int32_t gbitmap_sequence_get_current_frame_idx(GBitmapSequence * bitmap_sequence)

This function gets the current frame number for the bitmap sequence.

Parameters

bitmap_sequence

Pointer to loaded bitmap sequence

Returns

index of current frame in the current loop of the bitmap sequence

uint32_t gbitmap_sequence_get_total_num_frames(GBitmapSequence * bitmap_sequence)

This function sets the total number of frames for the bitmap sequence.

Parameters

bitmap_sequence

Pointer to loaded bitmap sequence

Returns

number of frames contained in a single loop of the bitmap sequence

uint32_t gbitmap_sequence_get_play_count(GBitmapSequence * bitmap_sequence)

This function gets the play count (number of times to repeat) the bitmap sequence.

Note

This value is initialized by the bitmap sequence data, and is modified by gbitmap_sequence_set_play_count

Parameters

bitmap_sequence

Pointer to loaded bitmap sequence

Returns

Play count of bitmap sequence, PLAY_COUNT_INFINITE for infinite looping

void gbitmap_sequence_set_play_count(GBitmapSequence * bitmap_sequence, uint32_t play_count)

This function sets the play count (number of times to repeat) the bitmap sequence.

Parameters

bitmap_sequence

Pointer to loaded bitmap sequence

play_count

Number of times to repeat the bitmap sequence with 0 disabling update_by_elapsed and update_next_frame, and PLAY_COUNT_INFINITE for infinite looping of the animation

GSize gbitmap_sequence_get_bitmap_size(GBitmapSequence * bitmap_sequence)

This function gets the minimum required size (dimensions) necessary to render the bitmap sequence to a GBitmap using the /ref gbitmap_sequence_update_bitmap_next_frame.

Parameters

bitmap_sequence

Pointer to loaded bitmap sequence

Returns

Dimensions required to render the bitmap sequence to a GBitmap

GBitmapDataRowInfo gbitmap_get_data_row_info(const GBitmap * bitmap, uint16_t y)

Provides information about a pixel data row.

Note

This function does not respect the bitmap's bounds but purely operates on the pixel data. This function works with every bitmap format including GBitmapFormat1Bit. The result of the function for invalid rows is undefined.

Parameters

bitmap

A pointer to the GBitmap to get row info

y

Absolute row number in the pixel data, independent from the bitmap's bounds

Returns

Description of the row

See Also

gbitmap_get_data
void grect_align(GRect * rect, const GRect * inside_rect, const GAlign alignment, const bool clip)

Aligns one rectangle within another rectangle, using an alignment parameter. The relative coordinate systems of both rectangles are assumed to be the same. When clip is true, rect is also clipped by the constraint.

Parameters

rect (in)

The rectangle to align (in place)

rect (out)

The aligned and optionally clipped rectangle

inside_rect

The rectangle in which to align rect

alignment

Determines the alignment of rect within inside_rect by specifying what edges of should overlap.

clip

Determines whether rect should be trimmed using the edges of inside_rect in case rect extends outside of the area that inside_rect covers after the alignment.

GRect grect_inset(GRect rect, GEdgeInsets insets)

Returns a rectangle that is shrinked or expanded by the given edge insets.

Notes

The rectangle is standardized and then the inset parameters are applied. If the resulting rectangle would have a negative height or width, a GRectZero is returned.

Use this function in together with the GEdgeInsets macro

GRect r_inset_all_sides = grect_inset(r, GEdgeInsets(10));
GRect r_inset_vertical_horizontal = grect_inset(r, GEdgeInsets(10, 20));
GRect r_expand_top_right_shrink_bottom_left = grect_inset(r, GEdgeInsets(-10, -10, 10, 10));

Parameters

rect

The rectangle that will be inset

insets

The insets that will be applied

Returns

The resulting rectangle

Data Structure Documentation

struct GBitmapDataRowInfo

Description of a single data row in the pixel data of a bitmap.

Note

This data type describes the actual pixel data of a bitmap and does not respect the bitmap's bounds.

Data Fields

uint8_t * data

Address of the byte at column 0 of a given data row in a bitmap. Use this to calculate the memory address of a pixel. For GBitmapFormat8BitCircular or GBitmapFormat8Bit this would be: uint8_t *pixel_addr = row_info.addr + x. Note that this byte can be outside of the valid range for this row. For example: The first valid pixel (min_x=76) of a row might start at 76 bytes after the given data pointer (assuming that 1 pixel is represented as 1 byte as in GBitmapFormat8BitCircular or GBitmapFormat8Bit).

int16_t min_x

The absolute column of a first valid pixel for a given data row.

int16_t max_x

The absolute column of the last valid pixel for a given data row. For optimization reasons the result can be anywhere between grect_get_max_x(bitmap_bounds) - 1 and the physical data boundary.

See Also

gbitmap_get_data_row_info
struct GEdgeInsets

Represents insets for four sides. Negative values mean a side extends.

Data Fields

int16_t top

The inset at the top of an object.

int16_t right

The inset at the right of an object.

int16_t bottom

The inset at the bottom of an object.

int16_t left

The inset at the left of an object.

See Also

grect_inset
struct GPoint

Represents a point in a 2-dimensional coordinate system.

Note

Conventionally, the origin of Pebble's 2D coordinate system is in the upper, lefthand corner its x-axis extends to the right and its y-axis extends to the bottom of the screen.

Data Fields

int16_t x

The x-coordinate.

int16_t y

The y-coordinate.

struct GRect

Represents a rectangle and defining it using the origin of the upper-lefthand corner and its size.

Data Fields

GPoint origin

The coordinate of the upper-lefthand corner point of the rectangle.

GSize size

The size of the rectangle.

struct GSize

Represents a 2-dimensional size.

Data Fields

int16_t w

The width.

int16_t h

The height.

Union Documentation

struct GColor8

Data Fields

uint8_t argb

Enum Documentation

enum GBitmapFormat

The format of a GBitmap can either be 1-bit or 8-bit.

Enumerators

GBitmapFormat1Bit
GBitmapFormat8Bit
GBitmapFormat1BitPalette
GBitmapFormat2BitPalette
GBitmapFormat4BitPalette
GBitmapFormat8BitCircular

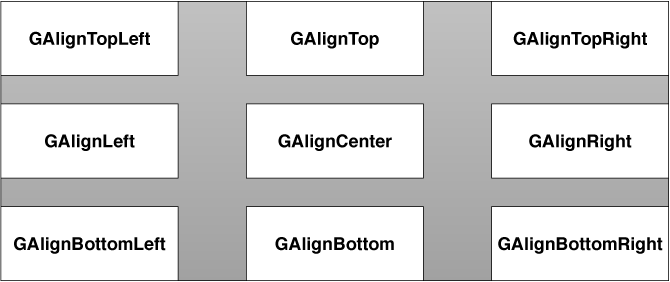

enum GAlign

Values to specify how two things should be aligned relative to each other.

bitmap_layer_set_alignment()

Enumerators

GAlignCenter

Align by centering.

GAlignTopLeft

Align by making the top edges overlap and left edges overlap.

GAlignTopRight

Align by making the top edges overlap and left edges overlap.

GAlignTop

Align by making the top edges overlap and centered horizontally.

GAlignLeft

Align by making the left edges overlap and centered vertically.

GAlignBottom

Align by making the bottom edges overlap and centered horizontally.

GAlignRight

Align by making the right edges overlap and centered vertically.

GAlignBottomRight

Align by making the bottom edges overlap and right edges overlap.

GAlignBottomLeft

Align by making the bottom edges overlap and left edges overlap.

  • SDK 3
  • SDK 4
enum GCompOp

Values to specify how the source image should be composited onto the destination image.

For Aplite, there is no notion of "transparency" in the graphics system. However, the effect of transparency can be created by masking and using compositing modes. Contrived example of how the different compositing modes affect drawing. Often, the "destination image" is the render buffer and thus contains the image of what has been drawn before or "underneath".

For Basalt, at the moment, only two compositing modes are supported, GCompOpAssign and GCompOpSet. The behavior of other compositing modes are undefined and may change in the future. Transparency can be achieved using GCompOpSet and requires pixel values with alpha value .a < 3. bitmap_layer_set_compositing_mode() graphics_context_set_compositing_mode() graphics_draw_bitmap_in_rect() graphics_draw_rotated_bitmap()

Enumerators

GCompOpAssign

Assign the pixel values of the source image to the destination pixels, effectively replacing the previous values for those pixels. For Basalt, when drawing a color palettized or 8-bit GBitmap image, the opacity value is ignored.

GCompOpAssignInverted
Note

For Basalt, this mode is not supported and the resulting behavior is undefined.

Assign the inverted pixel values of the source image to the destination pixels, effectively replacing the previous values for those pixels.

GCompOpOr
Note

For Basalt, this mode is not supported and the resulting behavior is undefined.

Use the boolean operator OR to composite the source and destination pixels. The visual result of this compositing mode is the source's white pixels are painted onto the destination and the source's black pixels are treated as clear.

GCompOpAnd
Note

For Basalt, this mode is not supported and the resulting behavior is undefined.

Use the boolean operator AND to composite the source and destination pixels. The visual result of this compositing mode is the source's black pixels are painted onto the destination and the source's white pixels are treated as clear.

GCompOpClear
Note

For Basalt, this mode is not supported and the resulting behavior is undefined.

Clears the bits in the destination image, using the source image as mask. The visual result of this compositing mode is that for the parts where the source image is white, the destination image will be painted black. Other parts will be left untouched.

GCompOpSet

Sets the bits in the destination image, using the source image as mask. For Aplite, the visual result of this compositing mode is that for the parts where the source image is black, the destination image will be painted white. Other parts will be left untouched. For Basalt, when drawing a color palettized or 8-bit GBitmap image, this mode will be required to apply any transparency.

enum GCompOp

Values to specify how the source image should be composited onto the destination image.

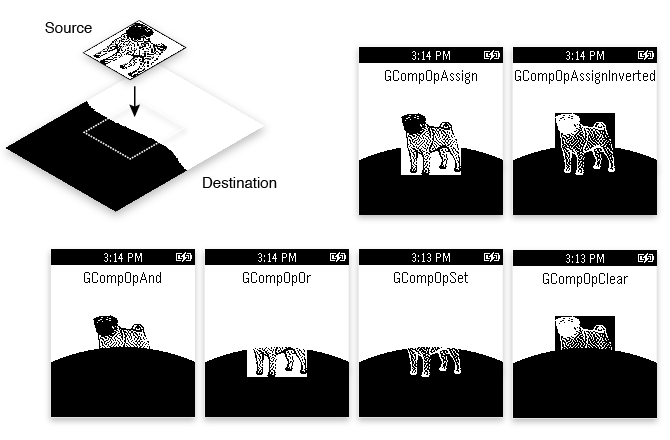

Contrived example of how the different compositing modes affect drawing. Often, the "destination image" is the render buffer and thus contains the image of what has been drawn before or "underneath".

For color displays, only two compositing modes are supported, GCompOpAssign and GCompOpSet. The behavior of other compositing modes are undefined and may change in the future. Transparency can be achieved using GCompOpSet and requires pixel values with alpha value .a < 3. bitmap_layer_set_compositing_mode() graphics_context_set_compositing_mode() graphics_draw_bitmap_in_rect() graphics_draw_rotated_bitmap()

Enumerators

GCompOpAssign

Assign the pixel values of the source image to the destination pixels, effectively replacing the previous values for those pixels. For color displays, when drawing a palettized or 8-bit GBitmap image, the opacity value is ignored.

GCompOpAssignInverted
Note

For bitmaps with a format different from GBitmapFormat1Bit, this mode is not supported and the resulting behavior is undefined.

Assign the inverted pixel values of the source image to the destination pixels, effectively replacing the previous values for those pixels.

GCompOpOr
Note

For bitmaps with a format different from GBitmapFormat1Bit, this mode is not supported and the resulting behavior is undefined.

Use the boolean operator OR to composite the source and destination pixels. The visual result of this compositing mode is the source's white pixels are painted onto the destination and the source's black pixels are treated as clear.

GCompOpAnd
Note

For bitmaps with a format different from GBitmapFormat1Bit, this mode is not supported and the resulting behavior is undefined.

Use the boolean operator AND to composite the source and destination pixels. The visual result of this compositing mode is the source's black pixels are painted onto the destination and the source's white pixels are treated as clear.

GCompOpClear
Note

For bitmaps with a format different from GBitmapFormat1Bit, this mode is not supported and the resulting behavior is undefined.

Clears the bits in the destination image, using the source image as mask. The visual result of this compositing mode is that for the parts where the source image is white, the destination image will be painted black. Other parts will be left untouched.

GCompOpSet
Note

For bitmaps of the format GBitmapFormat1Bit, the visual result of this compositing mode is that for the parts where the source image is black, the destination image will be painted white. Other parts will be left untouched.

Sets the bits in the destination image, using the source image as mask. This mode is required to apply any transparency of your bitmap.

Typedef Documentation

typedef GColor8 GColor
typedef struct GBitmap GBitmap
typedef struct GBitmapSequence GBitmapSequence
typedef struct GContext GContext

Macro Definition Documentation

#define GColorFromRGBA ( red, green, blue, alpha)

Convert RGBA to GColor.

Parameters

red

Red value from 0 - 255

green

Green value from 0 - 255

blue

Blue value from 0 - 255

alpha

Alpha value from 0 - 255

Returns

GColor created from the RGB values

#define GColorFromRGB ( red, green, blue)

Convert RGB to GColor.

Parameters

red

Red value from 0 - 255

green

Green value from 0 - 255

blue

Blue value from 0 - 255

Returns

GColor created from the RGB values

#define GColorFromHEX ( v)

Convert hex integer to GColor.

Parameters

v

Integer hex value (e.g. 0x64ff46)

Returns

GColor created from the hex value

  • SDK 3
  • SDK 4
#define COLOR_FALLBACK ( color, bw)

Convenience macro allowing use of a fallback color for black and white platforms. On color platforms, the first expression will be chosen, the second otherwise.

#define COLOR_FALLBACK ( color, bw)

Convenience macro allowing use of a fallback color for black and white platforms. On color platforms, the first expression will be chosen, the second otherwise.

#define PBL_IF_RECT_ELSE ( if_true, if_false)

Convenience macro to switch between two expression depending on the screen of the platform. On platforms with rectangular screen, the first expression will be chosen, the second otherwise.

#define PBL_IF_ROUND_ELSE ( if_true, if_false)

Convenience macro to switch between two expression depending on the screen of the platform. On platforms with round screen, the first expression will be chosen, the second otherwise.

  • SDK 3
  • SDK 4
#define PBL_IF_BW_ELSE ( if_true, if_false)

Convenience macro to switch between two expression depending on the screen of the platform. On black& white platforms, the first expression will be chosen, the second otherwise.

#define PBL_IF_BW_ELSE ( if_true, if_false)

Convenience macro to switch between two expression depending on the screen of the platform. On black& white platforms, the first expression will be chosen, the second otherwise.

  • SDK 3
  • SDK 4
#define PBL_IF_COLOR_ELSE ( if_true, if_false)

Convenience macro to switch between two expression depending on the screen of the platform. On color platforms, the first expression will be chosen, the second otherwise.

#define PBL_IF_COLOR_ELSE ( if_true, if_false)

Convenience macro to switch between two expression depending on the screen of the platform. On color platforms, the first expression will be chosen, the second otherwise.

#define GPoint ( x, y)

Convenience macro to make a GPoint.

#define GPointZero GPoint(0, 0)

Convenience macro to make a GPoint at (0, 0).

#define GSize ( w, h)

Convenience macro to make a GSize.

#define GSizeZero GSize(0, 0)

Convenience macro to make a GSize of (0, 0).

#define GRect ( x, y, w, h)

Convenience macro to make a GRect.

#define GRectZero GRect(0, 0, 0, 0)

Convenience macro to make a GRect of ((0, 0), (0, 0)).

#define PLAY_COUNT_INFINITE UINT32_MAX

Repeat Sequence or animation indefinitely.

#define PLAY_DURATION_INFINITE UINT32_MAX

Duration of Sequence or animation is infinite.

#define GEdgeInsets4 ( t, r, b, l)

helper for GEdgeInsets macro

#define GEdgeInsets3 ( t, rl, b)

helper for GEdgeInsets macro

#define GEdgeInsets2 ( tb, rl)

helper for GEdgeInsets macro

#define GEdgeInsets1 ( trbl)

helper for GEdgeInsets macro

#define GEdgeInsetsN ( _1, _2, _3, _4, NAME, ...)

helper for GEdgeInsets macro

#define GEdgeInsets ( ...)

Convenience macro to make a GEdgeInsets This macro follows the CSS shorthand notation where you can call it with.

  • just one value GEdgeInsets(v1) to configure all edges with v1 (GEdgeInsets){.top = v1, .right = v1, .bottom = v1, .left = v1}

  • two values v1, v2 to configure a vertical and horizontal inset as (GEdgeInsets){.top = v1, .right = v2, .bottom = v1, .left = v2}

  • three values v1, v2, v3 to configure it with (GEdgeInsets){.top = v1, .right = v2, .bottom = v3, .left = v2}

  • four values v1, v2, v3, v4 to configure it with (GEdgeInsets){.top = v1, .right = v2, .bottom = v3, .left = v4}

See Also

grect_insets

Need some help?

Modules

  • Color Definitions

Functions

  • gcolor_equal
  • gcolor_legible_over
  • gpoint_equal
  • gsize_equal
  • grect_equal
  • grect_is_empty
  • grect_standardize
  • grect_clip
  • grect_contains_point
  • grect_center_point
  • grect_crop
  • gbitmap_get_bytes_per_row
  • gbitmap_get_format
  • gbitmap_get_data
  • gbitmap_set_data
  • gbitmap_get_bounds
  • gbitmap_set_bounds
  • gbitmap_get_palette
  • gbitmap_set_palette
  • gbitmap_create_with_resource
  • gbitmap_create_with_data
  • gbitmap_create_as_sub_bitmap
  • gbitmap_create_from_png_data
  • gbitmap_create_blank
  • gbitmap_create_blank_with_palette
  • gbitmap_create_palettized_from_1bit
  • gbitmap_destroy
  • gbitmap_sequence_create_with_resource
  • gbitmap_sequence_update_bitmap_next_frame
  • gbitmap_sequence_update_bitmap_by_elapsed
  • gbitmap_sequence_destroy
  • gbitmap_sequence_restart
  • gbitmap_sequence_get_current_frame_idx
  • gbitmap_sequence_get_total_num_frames
  • gbitmap_sequence_get_play_count
  • gbitmap_sequence_set_play_count
  • gbitmap_sequence_get_bitmap_size
  • gbitmap_get_data_row_info
  • grect_align
  • grect_inset

Data Structures

  • GBitmapDataRowInfo
  • GEdgeInsets
  • GPoint
  • GRect
  • GSize

Unions

  • GColor8

Enums

  • GBitmapFormat
  • GAlign
  • GCompOp

Typedefs

  • GColor
  • GBitmap
  • GBitmapSequence
  • GContext

Macro Defintions

  • GColorFromRGBA
  • GColorFromRGB
  • GColorFromHEX
  • COLOR_FALLBACK
  • PBL_IF_RECT_ELSE
  • PBL_IF_ROUND_ELSE
  • PBL_IF_BW_ELSE
  • PBL_IF_COLOR_ELSE
  • GPoint
  • GPointZero
  • GSize
  • GSizeZero
  • GRect
  • GRectZero
  • PLAY_COUNT_INFINITE
  • PLAY_DURATION_INFINITE
  • GEdgeInsets4
  • GEdgeInsets3
  • GEdgeInsets2
  • GEdgeInsets1
  • GEdgeInsetsN
  • GEdgeInsets

Getting Help

Do you have questions about the Pebble SDK?

Do you need some help understanding something on this page?

You can either take advantage of our awesome developer community and check out the SDK Help forums, or you can send us a message through the website!
