Every item on the timeline is called a 'pin'. A pin can have information attached to it which is used to show it to the user, such as layout, title, start time and actions. When the user is viewing their timeline, they can use the information provided about the immediate past and future to make decisions about how they plan the rest of their day and how to respond to any missed notifications or events.
While the system and mobile application populate the user's timeline automatically with items such as calendar appointments and weather details, the real value of the timeline is realized by third party apps. For example, a sports app could show a pin representing an upcoming match and the user could tell how much time remained until they needed to be home to watch it.
Developers can use a watchapp to subscribe their users to one of two types pin:
Personal pins pushed to a user's timeline token. These pins are only delivered to the user the token belongs to, allows a high degree of personalization in the pin's contents.
Channels called 'topics' (one more more, depending on their preferences), allow an app to push pins to a large number of users at once. Topics are created on a per-app basis, meaning a user receiving pins for a 'football' topic from one app will not receive pins from another app using the same topic name.
Developers can use the PebbleKit JS API to combine the user's preferences with their location and data from other web-connected sources to make pin updates more personal, or more intelligently delivered.
The public timeline web API is used to push data from a own backend server to app users according to the topics they have subscribed to, or to individual users. Methods for doing this are discussed below under Three Ways to Use Pins.
The timeline architecture consists of multiple components that work together to bring timely and relevant data, events, and notifications to the user without their intervention. These components are discussed in more detail below.
The Pebble timeline web API (detailed in Public Web API) manages the currently available topics, published pins, and timeline-enabled apps' data. All pins that are delivered to users pass through this service. When a developer pushes a pin it is sent to this service for distribution to the applicable users.
The Pebble mobile app is responsible for synchronizing the pins visible on the watch with those that are currently available in the cloud. The PebbleKit JS APIs allow a developer to use a configuration page (detailed in App Configuration) or onboard menu to give users the choice of which pins they receive via the topics they are subscribed to. Developers can also send the user's token to their own server to maintain a custom list of users, and provide a more personal service.
The Pebble mobile app is also responsible for inserting pins directly into the user's timeline for their upcoming calendar events and missed calls. These pins originate on the phone and are sent straight to the watch, not via the public web API. Alarm pin are also inserted directly from the watch itself.
When a developer wants to push pins, they can do so from their own third-party server. Such a server will generate pins using topics that the watchapp subscribes to (either for all users or just those that elect to be subscribed) or user tokens received from PebbleKit JS to target individual users. See Public Web API for information on how to do this.
The timeline API is flexible enough to enable apps to use it to send data to users in three distinct ways.

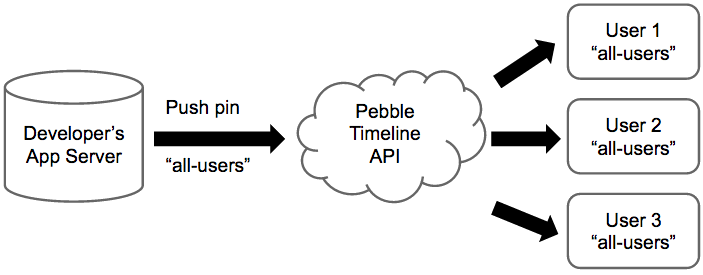

The most basic subscription method involves subscribing a user to a topic that is global to the app. This means all users of the app will receive the pins pushed to that topic. To do this, a developer can choose a single topic name such as 'all-users' and subscribe all users to that topic when the app is first installed, or the user opts in to receive pins.
Read Shared Pins to find out how to create topics.

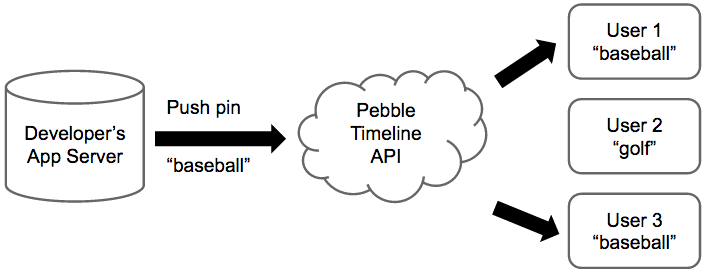

Developers can also use a configuration page in their app to allow users to subscribe to different topics, leeting them customize their experience and only receive pins they want to see. In the image above, the pin broadcast with the topic 'baseball' is received by users 1 and 3, but not User 2 who has only subscribed to the 'golf' topic.
Lastly, developers can use the timeline token to target individual users. This
adds another dimension to how personal an app can become, allowing apps to be
customized to the user in more ways than just their topic preferences. The image
above shows a pin pushed from an app's pin server to just the user with the
X-User-Token. For example, an app tracking the delivery of a user's
packages will only be applicable to that user.
See Create a Pin to learn how to send a pin to a single user.
